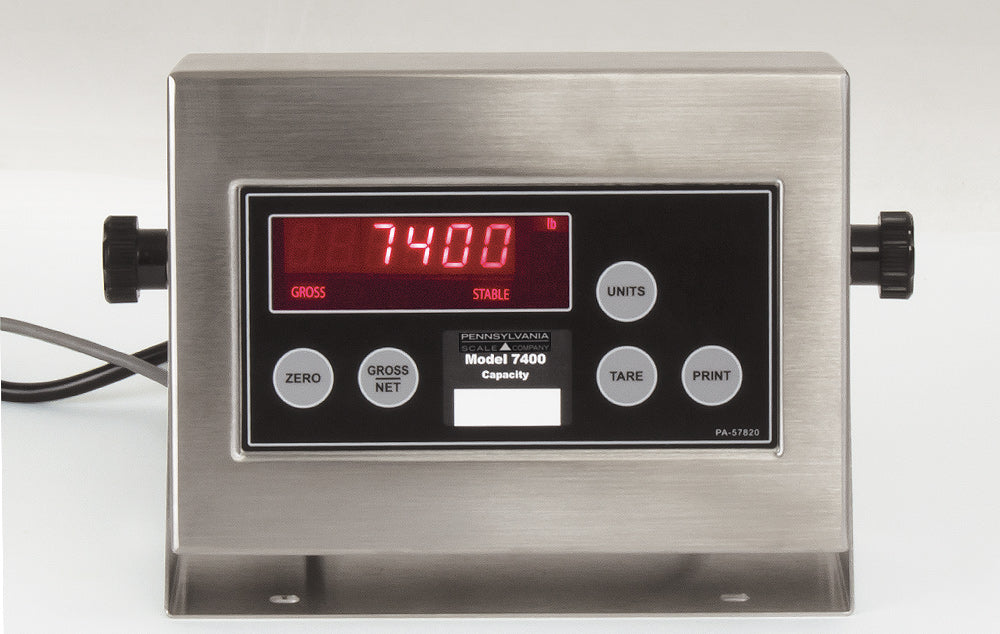

Pennsylvania Scale Co. 7400 Series Indicator
One Indicator — So Many Applications
Build your scale system on a solid, state-of-the-art foundation with the new 7400+. Whatever you weigh, a new technologically advanced PLUS+ series indicator will exceed your expectations.
Off-the-shelf compatibility and clean, intuitive design make these powerful next-generation indicators easy to use… yet packed with features and technology that leaves the competition behind.
Technical Specifications
Building Block for Systems Applications
Designed specifically for systems integrators
Optional Solid State Setpoints: (4) independent or (2) w/pre-act
Optional 4-20 mA/0-10 VDC Analog Outputs
System Friendly design, stand alone or integrate to weight processing system
A Technological Breakthrough!
16,777,216 internal counts + 60 Updates/Second
Powerful 16-bit Microprocessor with flash memory
Highly resistant to static-induced problems.
Custom applications available at standard pricing
Many custom features are built-in if selected during set-up
Upload special features via the digital communication port.
Proven PLUS+ Series Main Board.
Performance Specifications
(2) Asynchronous Serial Data Interfaces
RS-232, RS-485, RS-422 and Current Loop, fully addressable
Optional Analog Interface: 4-20 mA/0-10 VDC
For Parts Counting or Keyboard Tare applications, see the 7500+ and 7600+ indicators and scales
Time and Date with Battery back-up. Network addressable
Physical Dimensions
Indicator, no U-Bracket: 10(w) x 6-1/2(h) x 4(d)”
With U-Bracket installed, 12(w) x 7(h) x 4(d)”
Standard waterproof cable entries; optional Quick Disconnect
Options
Analog output 4-20 mA or 0-10 vdc for batching applications
Truck Weighing IN/OUT program with customized tickets
Full range of platforms and load cell accessories
Digital solid state Setpoints: (4) independent or (2) with preact
Approvals
National Type Evaluation Program (Approval No. 97-009A1)
Canadian Weights & Measures (AM-4869, rev. 3); CSA
Warranty
The parts and components of this Pennsylvania Scale product are warranted for four years from date of retail delivery against defects in materials or workmanship, subject to the terms and conditions of our standard warranty.
